Caracteristicas

Especificaciones

Model Number: X55

Power Source: Electric

Warranty: 1 Year

After-sale Service: Free spare parts

Material: Metal, Plastic

Shelf Life: 1years

Quality Certification: ce

Instrument classification: Class III

Safety standard: None

Type: Anesthesia Equipments & Accessories

Certificates: CE,ISO13485,CFDA&FSC etc.

Información básica

Certificación: ce, CE,ISO13485,CFDA&FSC etc.

Model Number: X55

Pago y Envío Términos

Descripción de producto

Product Description

X55 Specification

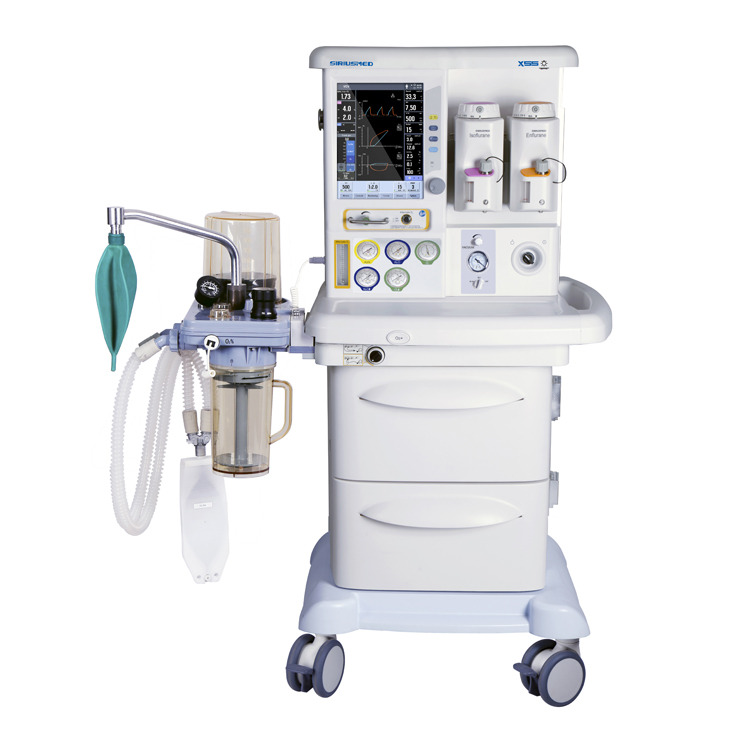

The most advanced Anaesthetic Workstation with high technology 12.1″TFT touch screen Suitable for pediatric & adult Comply with multi-parameter monitoring Option on advanced monitoring module of EtCO2 & SpO2 Integrated CO2 circle absorber with heating function Electrical backlight with adjustable endoscope light system With loops of P-V, F-V & P-F Special monitor support arms

Technical Specification

Ventilator Specification:

Patient type	Adult, Pediatric & Neonate
Ventilation modes	VCV, PCV, PRVC, SIMV, PSV, BACKUP, Manual
Setting	Touch screen & navigator wheel knob
Tidal volume	20~1500ml
Ventilation frequency	1~100bpm
I：E ratio	4：1~1：10
Pressure range	5~70cmH2O
Ppeep	OFF,3~30cmH2O
Inspiration plateau	off, 5%~60% Ti
Trigger sensitivity	0.5~20L/min; 0~-20cmH2O
High pressure	20~80cmH2O
Low pressure	0~20cmH2O

Monitoring:

Display	12.1″TFT touch screen	X40
Pressure	Paw, Ppeak, Pplat, Pmean, PEEP
Volume	MV, Vt
Breath rate
Gas FiO2
SpO2	Pulse, SpO2
Graph display	P-T, F-T, V-T waveforms & P-V, F-V, P-F loops, SPO2-T(Option), EtCO2(Option), AA(Option), Waveform frozen

Alarm:

Pressure: Paw high/low limit Volumes: MV high/low limit High limit of breath rate Gas FiO2 high/low limit Apnea EtCO2 Airway pressure high/low High PEEP level Power failure Low O2 supply pressure

Vaporizer:

Support 2 vaporizers (Selectatec Compatible) Agent type: Halothane, Enflurane, Isoflurane, Sevoflurane, Desflurane

Table 3 main monitored specifications

Parameter	X55 description
Inspiratory tidal volume	Range: 0 ~ 2500 mL; Resolution: 1 mL.
Expiratory tidal volume	Range: 0 ~ 2500 mL; Resolution: 1 mL.
Tidal volume	Range: 50 ~ 1500 mL; 20~1500ml(optional) The incremental：20～100 mL：5 mL；100～1500 mL：10 mL；
Respiratory rate	Range:1~100bpm, Incremental: 1bpm
Minute ventilation	Range: 0 ~ 60 L / min; Resolution: 0.1 L / min.
Self-minute ventilation	Range: 0 ~ 60 L / min; Resolution: 0.1 L / min.
Respiratory rate	Range: 0 ~ 100 bpm; Resolution: 1 bpm.
Spontaneous breathing frequency	Range: 0 ~ 100 bpm; Resolution: 1 bpm.
Respiratory ratio	Range: 9:1 to 1:99; resolution: 0.1.
Peak airway pressure	Range: 0 ~ 100 cmH2O; Resolution: 1 cmH2O.
Mean airway pressure	Range: 0 ~ 100 cmH2O; Resolution: 1 cmH2O.
PEEP	Range: 0 ~ 100 cmH2O; Resolution: 1 cmH2O.
Inspiratory plateau pressure	Range: 0 ~ 100 cmH2O; Resolution: 1 cmH2O.
The minimum airway pressure	Range: -20 ~ 100 cmH2O; Resolution: 1 cmH2O.
Fraction of inspired oxygen (optional)	Range: 15 to 100%; resolution: 1%.
