10.4 Inch LCD 60 Samples / Hour 3 Part Auto Hematology Blood Analyzer SI

Performance

High Stability & Accuracy

l Use the most advanced binuclear embedded digital circuit system, to make the analytical ability great and stable

l 2 counting channels of WBC and RBC, to make the test results more accurate and less cross- contamination

l Use CPLD technology in data processing, to avoid the interference of electromagnetic signals

Reliable Operation System

l ARM intelligent micro-processing technology

l Data analysis: intelligent pulse formulation technology

l Classification: floating landmark technology

l Module design, fast maintenance

User-friendly System

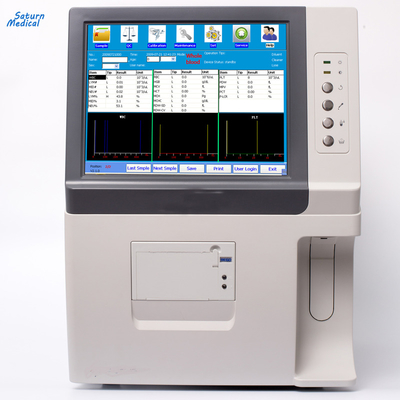

l 10.4’’large color LCD displays main menu and all parameters & color histograms in one screen

l Brief operation instruction built-in software, easy for user to view

l Separate module design, very simple mechanical structure, easy maintenance

l Self check for hardware, alarm for error

l Reagent depletion alarm for Lyse, Cleanser and Diluent, as optional function

Technical Features

l 2 counting mode: whole blood, pre-dilution blood

l Sample pre-dilution: internal diluter, add 1ml diluent automatically by the needle, no need to add diluent manually to avoid deviation.

l Calibration: automated or manual

l QC: comprehensive QC program, forming and printing the histogram automatically

l Block removal: Real time monitor, high ignition, soak, flush and back flush

Technical Specifications

Principle:         Electrical impedance for counting and SFT method for hemoglobin

Parameters:       WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%,RBC, HGB,

HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW,

PCT, P-LCR, and 3 Histograms for WBC, RBC and PLT

Throughput:       Up to 60 samples per hour

Sample Volume: Whole blood: 9μl, Pre-dilution blood: 20μl

Aperture Diameter: WBC: 80μm   RBC: 50μm

Alarms:            Error messages

Display:           10.4’’ large color LCD

Storage:          10,000 sample results including histograms,

available to increase storage by expanding memory card

Printout:         Built-in thermal printer, various print-out formats; external printer optional

Input:           Mouse and keyboard, connected by USB port

Interface:         USB x3, RS232 x2

Working Conditions:

Temperature: 15-35℃, Humidity: ≤80%

Atmospheric pressure: 70Kpa-106Kpa

Power supply: AC220V±22V, 50±1Hz

Dimension:        325x370x545mm(L*W*H)

Weight:           16Kg(net), 25Kg(gross)
